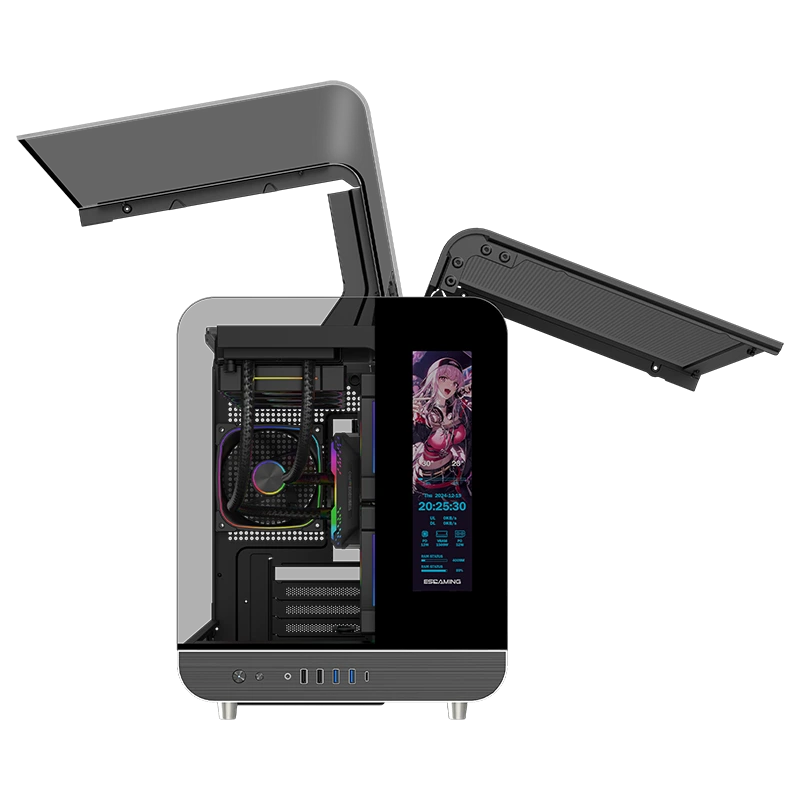

Aircraft 007 Supercar Of Computer Cases
Aircraft 007
Supercar Of Computer Cases.
Ultra-Cool Display
Personalized Custom Build
Triple-screen panoramic view
Immersive radiance, ushering in a new era of style.
Higher-transparency floating fan mount
Advanced cooling airflow
Prevents case heat buildup, unlocking full hardware potential.
Tool-free panels
Gently push aside the metal tab shown in figure 1, and the dual wings of
The chassis gracefully unfold. Once aligned perfectly with the circular hole
In the metal structure, simply press the round snap button in figure 2 to
Securely lock the wings in place. Effortlessly, elegance emerges.
120mm argb fans up to 12
Unleash superior
Cooling potential
360/280/240/120mm on top panel
360/240/120mm on bottom panel
240/120mm on motherboard panel
I/0 panel
Power,Reset Button,USB2.0x1,USB3.0x2,
Type-C x 1,Headphone/Mic Combo Jack
Up to 12 x 120mm fans &water cooling
Powerful cooling compatibility
Max. Cpu cooler height : 168mm. Supports most of the high-end air coolers.
Compatibility
| Motherboard support | Micro-ATX, ITX |
| CPU cooler max height | ≤160mm |
| GPU max length | ≤385mm |
| 3.5'' | 3.5''HDD x2 or 3.5''HDD x1 + SSDX1 |
| 2.5'' | 3.5''HDD x2 or 3.5''HDD x1 + SSDX1 |
| Power Supply max length(Include cable)s 240mm | |
Exclusive right-side cooling design
Cooled by three fans for worry-free gaming.
Transparent glass fan bracket
Delivering more colorful surprises
Dual chamber
Dual chamber design ensures independent
Cooling for cpu/gpu on the left and psu /
Drives on the right.
Dimensions
439*300*388mm(LWH)
SPECIFICATION
|
Model |
XPH |
Radiator Support |
360/280/240/120mm on top panel, 360/240/120mm on bottom panel, |
|
Front Panel |
Full Tempered glass+ Screen Pixel Display |
|
support top 360mm liquid cooler |
|
Top cover |
0.7mm Steel |
Drive Bays |
5'25 ODD x0 |
|
Left/ Right Side Panel |
Tesla airplane door mode |
|
3.5''HDD x2 or 3.5''HDD x1 + SSDX1 |
|
Chassis |
SPCC0.7mm, Black Inside |
PCI Slots |
4 |
|
USB1.0x2 HD Audio |
Included |
Product Size |
L439*W300*H388 mm |
|
USB3.0 x2 |
Included |
Package size |
L470*W375*H495 mm |
|
Type C |
Included |
Gross Weight |
11.1kgs |
|
Support Motherboard |
MICO-ATX/ITX |
Net Weight |
9.1kgs |
|
Suport M/B back plug |
YES |
40HQ |
610PCS |
|
PSU Port |
Bottom / ATX.240mm,without PSU cover |
Max.VGA Card |
Max.VGA Card: |
|
Reserved Fan Ports |
Top: 3x12cm (Fan optional) |
Max. CPU Cooler |
168mm |
|
Unit Price |
￥470.00 |
Unit Price |
US$69.00 |
