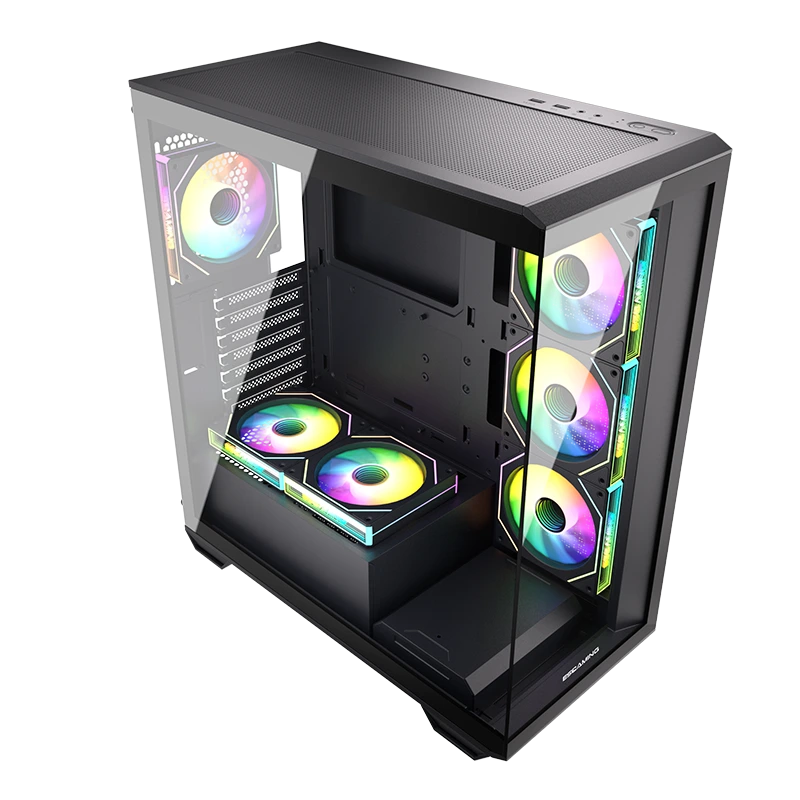

High End Black SPCC Tempered Glass ATX Tower Cabinet Gaming Pc Case Support Liquid Cooler GILGAMESH
GILGAMESH
CONSTELLATION SERIES
270° FULL-VIEW TEMPERED GLASS
Seamless paneling design with full-view panoramic tempered glasses, providing a transparent and spacious feel. Inclined power supply shroud decorated with embellishing ARGB lighting strip also makes a mysterious vibe.
MASSIVE AIRFLOW VIA HONEYCOMB MESH
Top, bottom, and right side feature honeycomb mesh for smooth airflow and effective dust prevention.
Versatile configuration
Pre-installed 6 x ARGB PWM fans with built-in fan controller
3 reverse fans on the side provide massive air intake.
AMPLE SPACE FOR WATER COOLING
Simultaneously supports top 360mm and side 240mm radiators.
Cooling compatibility
Supports simultaneous installation of 10 x 120mm fans.
3 X DUST FILTERS
Three-sided dust protection with magnetic dust filters on the top, bottom and right side, along with another flat filter at the bottom, effectively preventing dust and easy to clean.
TOOL-FREE DESIGN
Designed with drop-proof bolt, fixing slot, and fixing stud, the glass panels are convenient for hardware disassembly and cleaning.
Support RTX 40 Series Graphics Cards
Storage Capacity
HDD cage is removable;
EXTENSIVE INTERIOR
| Motherboard support | ATX, Micro-ATX, ITX |
| CPU cooler max height | 170 mm |
| GPU max length | ≤ 410mm |
| Power Supply max length | ≤ 180mm (Include cable) |
Specification
Main spec
| Model Name | GILMESH |
| Color | Black |
| Front Panel | Easily datachable Tempered Glass |
| Dust-proff filter | Magnetic Dust Filter in the top Panel |
| Bottom panel | |
| Left Side Panel | sliding 4mm Tempered Glass |
| Right Side Panel | Metal with hole+360mm length dust-filter |
| Chassis Material | SPCC 0.7MM |
| USB2.0x1+ HD Audio | Included |
| USB3.0 x1 | Included |
| Support Motherboard | ATX,Micro ATX,Mini ITX， |
| PSU Port | Bottom / ATX |
| Reserved Fan Ports | MB Tray: 3x12cm (Fan optional) |
| Top: 3x12cm or 3x14cm(Fan optional) | |
| Rear: 1x12cm (Fan optional) | |
| PSU Cover: 3x12cm (Fan optional) | |
| Radiator Support | TOP: 360mm |
| MB Tray: 360mm | |
| Rear: 120mm | |
| Drive Bays | 1*HDD+1*SSD |
| PCI Slots | 7 |
|
Dimensions (L x W x H) |
Chassis: 435*210*465MM without including feet pad |
| Chassis: 435*210*483MM including feet pad | |
| Package:540*314*550MM | |
| Max.VGA Card Length | 420mm |
| Max. CPU Cooler Height | 170mm |
| Max PSU Length | 180mm |
| 40 HQ Container | 798pcs |
| Package Cartons | K:K 5 ply, EPE |
