ES750W
Drives The Whole Field
Stability:
The Core of Efficiency

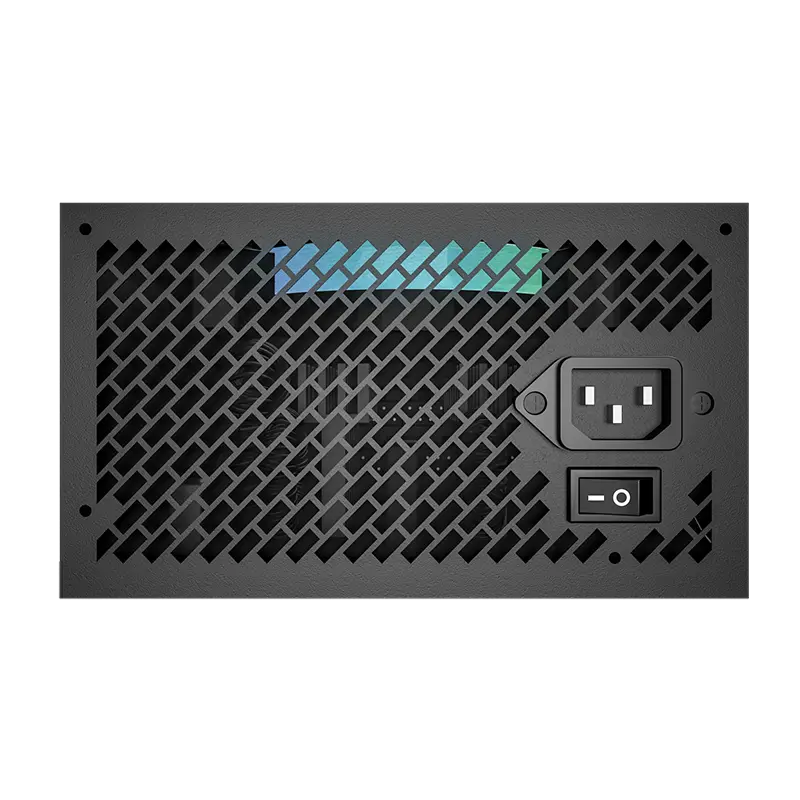

Drives The Whole Field: 750W Power Supply
Delivering unmatched efficiency, rock-solid reliability, and superior performance,
This power supply ensures your high-end PC runs flawlessly.
Elevate your system with cutting-edge technology and unbeatable power stability.
High Standards Guarantee
High Quality
Built to ATX3.1 and PCIe 5.1 standards, the ES750W comes with the 12V-2X6 cable
to deliver unmatched safety, efficiency, and performance. Upgrade your system with
next-gen power.
Peak Wattage Support – 2x of Total PSU Wattage
Peak GPU Wattage Support - 3x of GPU Wattage
Hold up time – Above 21ms
90% Efficiency Power Supply:
80 PLUS & Cybenetics Gold Certified
90% efficiency, ES750W maximizes energy savings while delivering top-tier performance.
50% load efficiency, 8% higher than the normal two-tube forward drive (85%)
Silent Performance:
Cybenetics A+ Certified

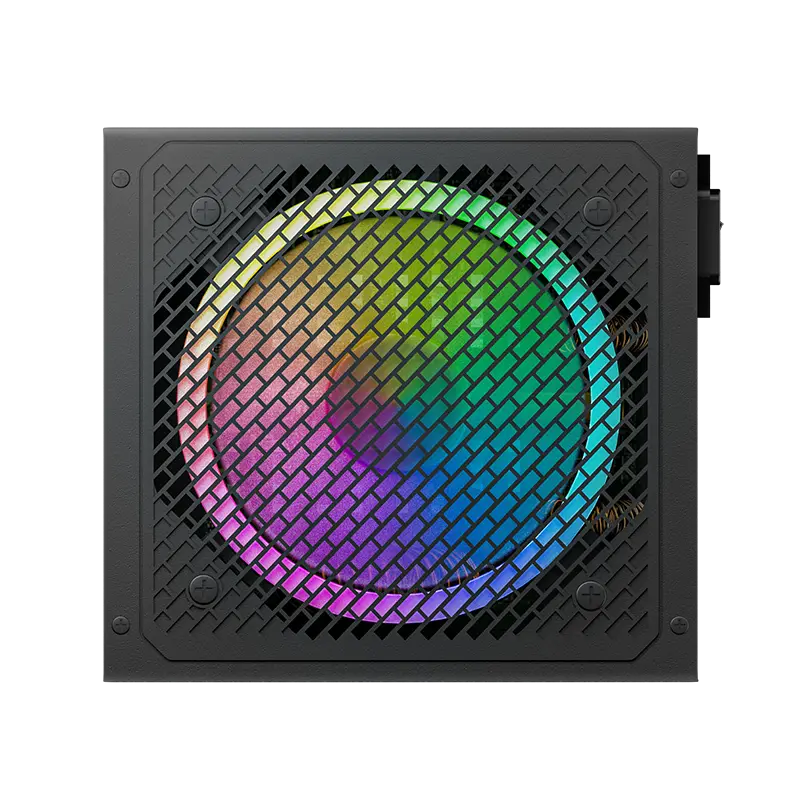

With 120mm FDB Fan
Experience silent power with ESGAMING's 120mm ultra-quiet FDB fan.
With Zero Fan Mode, the fan stays off under low loads (15-20%),
so your system runs quietly even during light tasks.

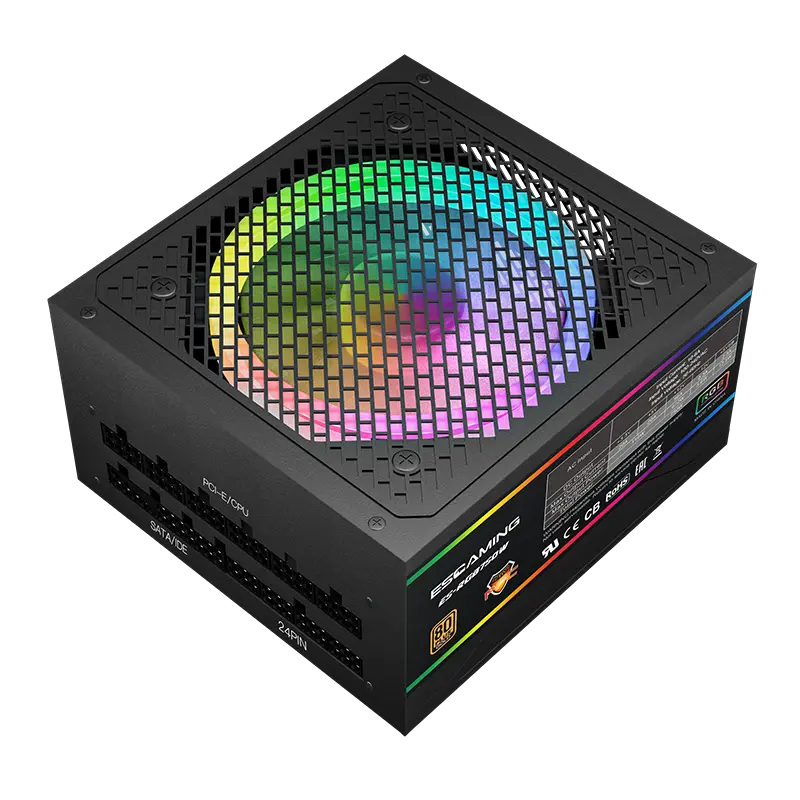

Fully Modular Black flat line
Custom full module layout wire, say goodbye to finishing wire troubles
The material is soft, making wiring more convenient, detachable, collectible, and easy to store.
At 68% softer and 0.6mm thinner than traditional cables, they provide 41%
higher density and a more efficient power transfer.
Hardware upgrade
More stable
More stable output: DC-DC voltage regulator design, voltage stability up to 1%
Stable output to ensure that each hardware of the chassis
can better play their own performance.
Efficiency Upgrade
More energy efficient. More stable.
More durable. More useful
Safeguard Upgrade
Equipped with OPP, OVP, UVP, SCP, OCP, and OTP protections,
ensuring industrial-grade safety for your system.
With a 5-year warranty,
you get unmatched reliability and peace of mind for the long haul.
SPECIFICATION
|
Model |
ES750W |
|
|
Wattage650 |
650 | |
|
Cybenetics Efficiency |
Cybenetics gold |
|
|
Cybenetics Nosie |
A+ |
|
|
80 PLUS Efficiency |
gold |
|
|
Input |
Full Range |
|
|
Dimensions (L*B*H) |
160 × 150 × 85 |
|
|
Fan |
Fan Size |
120mm |
|
Bearing |
FDB |
|
|
hybrid mode fan |
digital control |
|
|
MTBF |
100,000 hours |
|
|
Operating Temperature |
0 - 50 °C |
|
|
Protections |
OPP、OVP、UVP、OCP、OTP、SCP |
|
|
Regulatory |
cTUVus、TUV、CB、CCC、BSMI、EAC、CE |
|
|
Connectors |
M/B 20+4Pin |
1(20+4) |
|
CPU 4+4Pin |
1(4+4) |
|
|
PCIE 6+2 |
4(6+2) |
|
|
SATA |
6 |
|
|
PATA |
3 |
|
|
FDD |
1 |
|
|
AC Input |
100-240Vac 50-60Hz 12-6A |
||||
|
DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
|
Max. Output Current |
12A |
12A |
91A |
0.3A |
3A |
|
Max. Output Power |
100W |
1092W |
3.6W |
12.5W |
|
|
Total POWER |
750W |
||||
