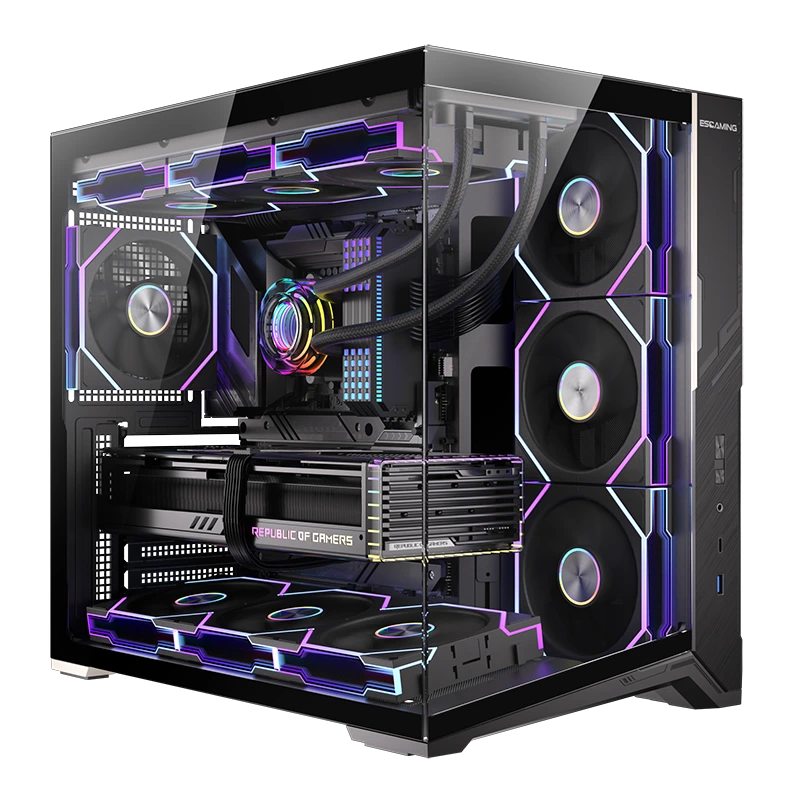

ZERO MAX
ZERO MAX BLACK
8° Tilt Series Gaming Case
8° TILT CREATIVITY
Innovative 8° slanted bottom airflow channels guide cool air directly to the GPU
Improves thermal performance while maintaining a clean internal layout
270° FULL-VIEW
TEMPERED GLASS
Front panel with tempered glass for a clean, modern showcase appearance
Left side panel made of 4mm tempered glass with rear protective screws for enhanced safety
EFFICIENT BOTTOM
HEAT DISSIPATION
Can accommodate three 120mm fans with bottom dust filter
TOP DUST FILTER
Fine mesh, ventilated and dust-resistant.
AIRFLOW DESIGN - EXCELLENT VENTILATION
TOP 360MM
WATER COOLING
FRONT I/O
Standard: USB3.0 + USB2.0
Type-C(Optional)
UP TO 10 X 120MM FANS &WATER COOLER
POWERFUL
AIR COOLING
COMPATIBILITY
Max. CPU Cooler Height: 160mm
SUPPORTS LENGTHY RTX 50 SERIES GPU
Max.VGA Card Length:415mm
COMPATIBILITY
| Motherboard support | ITX/M-ATX/ATX |
| CPU cooler max height | ≤160mm |
| GPU max length | ≤415mm |
| 3.5” | 2 |
| 2.5” | 1 |
| Power Supply max length(Include cable)s 180mm | |
ENHANCED HDD/SSD
MOUNTING
Features a removable mounting tray for easier installation.
Supports 3.5”HDDX2 +2.5”SSDX1
DIMENSIONS
L450*W225*H498 mm
Specification
Premium GAMING ATX MIDI TOWER CASE QUOTATION
| Model Name | ZERO MAX |
| Color | Black |
| Front Panel | Tempered Glass |
| Front Panel Plastic decoration color | Gray in Black case/Sky blue in white case |
| Buttom Panel | High-density punching Mesh A 8° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look. |
| Dust-proof Filter | Magnetic Dust Filter in the top Panel |
| Left Side Panel | 4mm Tempered Glass with protective screws on back |
| Right Side Panel | Metal with mesh |
| Chassis Material | SPCC 0.6MM |
| USB2.0x1+ HD Audio | Included |
| USB3.0 x1 | Included |
| Type C-20GP speed | Add 2$ |
| Support Motherboard | ATX/M-ATX |
| PSU Port | Bottom / ATX |
| Reserved Fan Ports | MB Tray: 3x12cm (Fan optional) |
| Top: 3x12cm (Fan optional) | |
| Rear: 1x12cm (Fan optional) | |
| Bottom: 3x12cm (Fan optional) | |
| Radiator Support | TOP: 360mm |
| Drive Bays | 2*HDD+1*SSD |
| PCI Slots | 7, with a movable vertical detachable slot by screws |
| Dimensions (L x W x H) | Chassis: 440*275*388mm |
| Case: 440*275*398mm including feet pad | |
| Package: 464*329*484mm | |
| Weight: | 6.1kgs/7.65kgs |
| Max.VGA Card Length | 415mm with a movable holder |
| Max. CPU Cooler Height | 160mm |
| Max PSU Length | 180mm |
| Cable Management | 90mm |
| 40 HQ Container | 900 |
| Package Cartons | K:K 5 ply |
