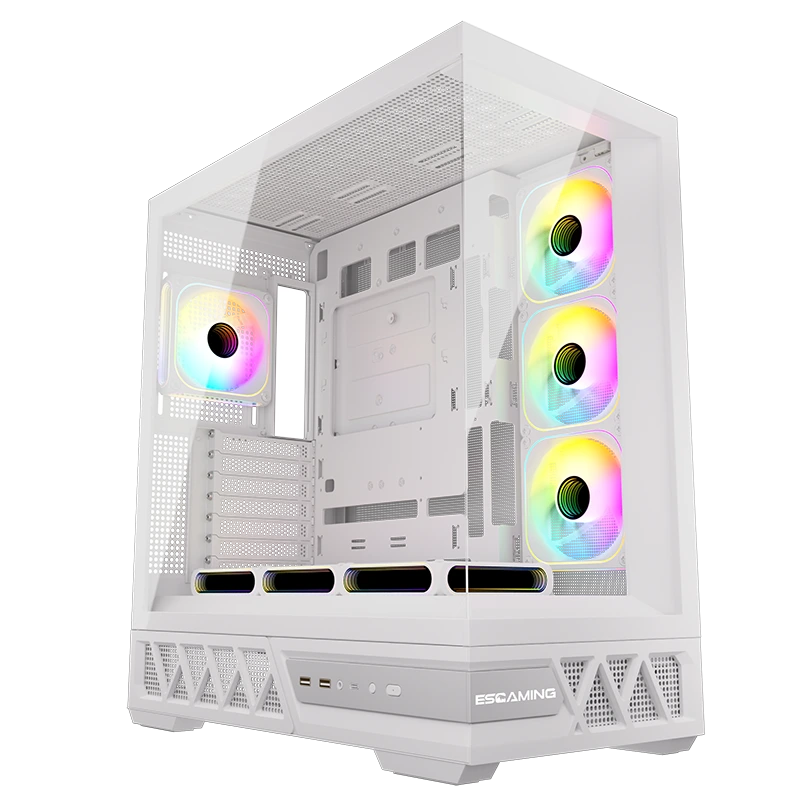

ENKIDO B/W
Parallel World SERIES
SCI-FI DESIGN WITH PANORAMIC 270° VIEW
VERTICAL COOLING
Supports up to 10 fans, with large area of vents around lower chamber, allowing for bottom-to-top vertical airflow.
MULTI-DIRECTIONAL AIR INTAKE
AND MASSIVE AIRFLOW
Fine mesh on the top and right panel, and a great number of vents on the front, left and bottom of lower chamber provide massive airflow.
PRE-INSTALLED 6 X 120MM ARGB PWM FANS
& 1 X 140MM ARGB PWM FAN
2 X 360MM RADS
Supports simultaneous installation of 360mm radiators on the top and side.
SIDE RADIATOR INSTALLATION
Remove the small cover on the PSU shroud to install a side radiator. Overall
thickness up to 70mm.
(*When installed a side radiator with more than 52mm thickness, GPU
length is limited to 280mm.)
SUPPORT RTX 5090
No interference between side radiator with standard thickness (52mm) and RTX 5090.
ALL REUSABLE FULLY-OPEN PCI SLOT COVERS
Configured with 7 reusable PCI slot covers, which can be turned 90* to mount the
GPU vertically (additional riser cable needed).
MULTIPLE HARD DRIVES
Supports multiple hard drives, with different compatibility depending on the form factor of installed motherboard, 2 x 3.5" HDD + 3 x 2.5" SSD at most.
I/O PANEL
● Power
● LED Control Button
● Type-C 10Gbps x 1
● Headphone/Mic Combo Jack
● USB 3.0 x2
Extensive Interior
| Motherboard support | ATX，M-ATX, MiniITX, Back plug ATX/MATX |
| CPU cooler max height | ≤172mm |
| GPU max length | ≤430mm |
| Power Supply max length | (include cable)≤ 180mm |
Specification
Main spec
| HIGH END GAMING ATX MIDI TOWER CASE QUOTATION-N7 Glass | |
| Model Name: | GILMESH |
| Color | Black/WHITE |
| Front Panel: | CLIP-ON Tempered Glass |
| Dust-proff filter | Magnetic Dust Filter in the top Panel |
| Bottom panel | |
| Left Side Panel: | CLIP-ON Tempered Glass Screwless |
| Right Side Panel | Metal |
| Chassis Material: | SPCC(0.6-0.8 mm) |
| Suport M/B back plug | YES |
| Type-Cx 1 | Included |
| USB3.0 x2 + HD Audio | Included |
| Support Motherboard | ATX，MicroATX, MiniITX, Back plug ATX，Back plug MATX |
| PSU Port: | Bottom / ATX |
| Reserved Fan Ports: | MB Tray: 3x12cm (Fan optional) |
| Top: 3x12cm or 2x14cm(Fan optional) | |
| Rear: 1x12cm (Fan optional) | |
| PSU Cover: 3x12cm (Fan optional) | |
| Radiator Support | TOP: 360mm/240mm |
| Rear: 120mm | |
| Drive Bays: | 2*HDD +3*SSD |
| PCI Slots: | 7 |
| Dimensions (L x W x H) | Case: 445*235*490MM |
| Carton: 566*327*547MM | |
| Weight: | 7.95kg/9.65kg |
| Max.VGA Card Length: | 430mm |
| Max. CPU Cooler Height: | 172mm |
| Max PSU Length | 180mm |
| Cable Management : | 35mm |
| Package Cartons | K:K 5 ply, EPE |
